A little 2012 Christmas Cheer

Santa may be late, so sorry if he loses your present out the back of his pickup.

Tosa Art - 2012

Thought I'd try a little more artistic approach with this car. Played around with some filters in Photoshop.

PARADIGM renders - 2012

This is a render I did a week or 2 ago. It's loosely based on my Tosa design I did for the GrabCAD competition. I've called it the 'Paradigm'. Had some fun with different colours and materials. It's actually more of a race car, maybe I'll throw some #'s and livery on it next.

Check out the new issues 16 & 17 of Elemente Magazine. Angus MacKenzie has some awesome design articles in there (Lambo, McLaren, Calgary design, architecture, etc...). He's also done much of the photography. Great work Angus!
Issue 16
Issue 17

The bulls, Stephen Winklemen leading the charge

Calgary's Peace Bridge

Panzerfaust by a good friend Tyler & Hillary Jenkins of Blacksheep Studios

Epic Torq Update - 2012

Epic showed up at the SEMA show and revealed the new Torq. They had a booth with DUB. Here's a couple pics, but make sure to check out their facebook page too. www.facebook.com/EpicElectric

There's a sneak peak at the interior there too. I'm guessing they'll continue to reveal more and I'm looking forward to some driving reviews.

Watch Design, Lancaster MKX & Night Raid - 2012

It's refreshing and I think important to explore other product design avenues/subject matter once in awhile outside of your specialty. In terms of product/industrial design ultimately the basic design fundamentals apply, but you'll probably want to know your target audience and try to be familiar with trends, materials, technology, etc... in the specific industry.

This is my first attempt at a watch design. It's for another GrabCAD competition being held by WoodChip design. The results aren't in yet, but here's hoping. The judging is taking place now and you can view the competition and 100+ entries here: http://grabcad.com/challenges/creative-watch-design

The competition stated they'd like to see inspiration taken from things like Formula 1 or WW2 bombers so I've gone with an Avro Lancaster theme. There's 2 versions, the Lancaster MKX and the Lancaster Night Raid. Hope you enjoy.

Car Render Tutorial - Prometheus car (2012)

I had some time between jobs today so I thought it's about time I put together a tutorial. The main area I want to focus on is the initial 5 or 6 steps. I called the car 'Prometheus', (big fan of the Alien movies) and back story about the Greek God is pretty cool. Anyways, it's a futuristic design with hubless maglev wheels and maybe designed for 2050 or something.

There's multiple Photoshop tutorials on the subject, so to offer something new I figured I'd show how I set up the line art using Adobe Illustrator and transferring it to Photoshop to render. Like any program Illustrator can take some practice, but I've found it incredibly useful for my field of work. Especially more technical drawings like setting up 4 view shots for creating CAD models of your vehicles. So hope you enjoy.

1) As with any render, start with a good sketch. This one's still pretty loose, but has enough to build on. I've been working with a Cintiq 12WX, so still getting the hang of it, but definitely worth it if you can swing it. Doesn't matter how you do the sketch, ballpoint, Wacom, whatever works. This will be your canvas to trace over, so save or scan it and place it in Adobe Illustrator.

2) Once in Illustrator, It's worthwhile to set up a few perspective lines. This program is great for it. Vector graphics allow you to set up good foundations for your drawings. Photoshop can of course do this fine as well, but vectors won't pixilate and you can continuously move them into position until you're satisfied. This process revealed a few perspective fixes I needed to make as well.

3) Using all paths, I fixed the perspective and simply traced the sketch, detailing out other areas like the lights and wheels. Again, the beauty with vectors is you can continuously tweak your paths/lines until your satisfied. Thickness of your line is also a big factor. With thicker lines, it can look more Hotwheels or comic like (which is perfectly fine), with thinner almost suggestive lines you can achieve a more realistic look. This render errs on the Hotwheels aesthetic. You'll notice at this stage the drawing will loose that free-form aesthetic of the hand drawn sketch. That's where this next step makes this all worthwhile...

4) In the 'Stroke' tab at the bottom is a box called 'profile' where you can set up the stroke characteristics. Select the lines and choose a line profile. I use a couple of these to get that more freehand sketch look, but I'm also wanting to keep a real clean appearance. I'm using CS5, I believe anything previous won't have this profile option. But in the older versions you can actually create custom brushes (pen strokes) that work in a similar manor. You can set up different line widths and tapers.

5) You can see the sketch has a nice almost perfect hand drawn appearance. I believe this method works well for cars as these are typically clean, smooth, or chiseled forms. Again, you'll see how easy it is to adjust your lines (including making them more suggestive or faint). If you were to do this free hand or with Photoshop, adjusting these lines would mean spending extra time erasing an area and redrawing. With Illustrator you can just grab a path and move the line until it's just right without erasing or redrawing it. Next is to save this out and open with Photoshop. Depending on the detail you want, from sketches to get to this stage took about 30-35 minutes. You can knock it out pretty quick though if you're keeping linework to a minimum.

6) For the next few stages there's tons of tutorials out there so you'll likely see some similar steps in here. A grey background helps in the process to push your highlights out. The beauty of the lines we created in Illustrator is they're all closed, so I simply take the magic wand tool and select the negative space, then select inverse and fill in the car with a mid tone grey.

7) It's not necessary, but my preference is to block out the different materials early on. I'm not so much concerned about colors yet and I'll leave the body (paint) grey for now. This helps to get a feel for what the design is going to look like. Helps to see any glaring issues and I can always go back and tweak in Illustrator and re-import the line work. Knocking out the forms with values is done much easier in grey-tone. Apart from a few areas, color can make things complicated so we'll be adding that later on.

8) Onto the highlights. Pick your light source, this is sort of centered above and off to the rear. With the magic wand you can use that sketch layer to section off areas of the highlights and create the sharp edges at the ends of the forms etc... With a 20 - 30% white airbrush use broad strokes as much as possible. In a few spots you can see it gets a bit mottled because I was using too small a brush.

9) Here we've got much of the shading in as well. This layer is set to multiply and it's just a mid to dark grey. Placing the ground shadow also helps a lot in visually planting the car. You can see that I've adjusted some of the highlights too. As you add the shading I find that I need to adjust highlights to get the right balance. One of the layer styles I often use for the tires is 'Bevel and Emboss'. Because the tires are perfectly round from using Illustrator lines, the bevel highlights come out nice and crisp to create that tire profile. You can adjust the light source and depth etc... After, I rasterize the layer and make a few small tweaks to finish the tires off.

10) About 95% complete at this stage. I've further refined the highlights and shadows and added a red layer to the body and matched the background to that. Has a nice dramatic affect. I re-examined the composition and moved the car a touch to the right as well.

11) Lastly I add another layer of highlights to pick out some of the brighter spots. You can see I've selected an area of the glass to show a glow inside the car. The idea behind the glazing is it's a thick layer that even wraps around the rear fenders. I've also added some details like the grille mesh and glow around the lighting areas. I'm happy with the design, but I think I've still got to get the hang of using the Cintiq. I'm thinking it's maybe a bit busy with the highlights, but you can at least see how the clean lines work. Thanks...

Here's other examples to show similar results. This is my sushi taillight supercar and below is a convertible version of the Kestrel. These probably took 2/3 the time of Prometheus. Simpler linework and you can see how clean it can look.

Epic Torq Roadster - 2012

Here's some of my most recent work.  I was privileged to join the Torq project as a co-designer with Jason Hill. I began where Jason left off taking a bit of a different design direction. It was communicated from Epic that it was to have faceted aggressive forms and to keep true to the flavour of the original design. I did much of the surface ideation and completed the CAD modeling and these renders for Epic's marketing purposes. Check out more info on the trike here: www.evepic.com/on-road

I've just wrapped up the design for the center console (not shown in these images). Stay tuned to see the final reveal with a completed interior at this years SEMA show. I'll post more pics (some actual photos) at a later date. Hope you enjoy it.

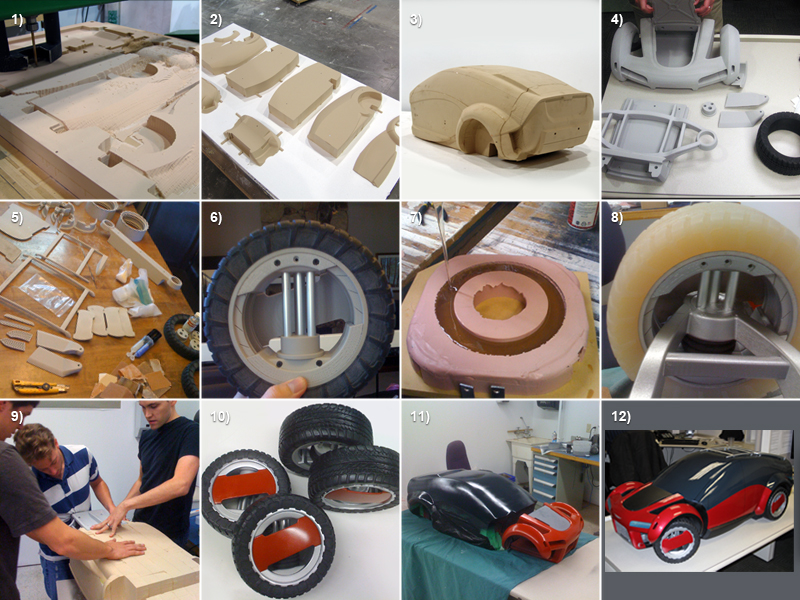

VPV Masters project - 2008

Here's my final Masters project while studying at Coventry University from 2008. This is the VPV (Versatile Performance Vehicle). I was asking the question, 'Can the SUV Survive Until 2030 in North America?" ...and here was my results.
